Highly Accurate, Low Pressure Industrial Transducer
PX654
1 year warranty

Highly Accurate, Low Pressure Industrial Transducer

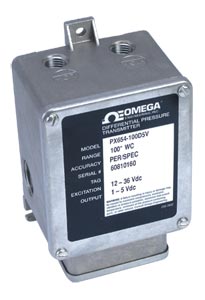

PX654:Highly Accurate, Low Pressure Industrial Transducer
Click for larger image.

¥ 9,310.00  PX654-0.5D5V
• IDEAL APPLICATIONS:
• Use With Boiler Inlet Air
• HVAC
• Fume Hoods
• Level Control
• NIST Traceable Calibration Certificate

View related products - Pressure Transducers

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

SPECIFICATIONS
Excitation: 12 to 36 Vdc
Output: 1 to 5 Vdc
Linearity: 0.3% FS (BFSL)
Hysteresis: 0.02% FS
Repeatability: 0.05% FS
Operating Temp: -29 to 85°C (-20 to 185°F)
Compensated Temp: -18 to 72°C (35 to 160°F)
Thermal Effects:
    Zero: 0.015% FS/°F
    Span: 0.015% FS/°F
Proof Pressure: 10 psi
Burst Pressure: 50 psi
Static Pressure: 100 psi
Gage Type: Capacitance
Supply Current: <5 mA
Calibration Report: NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided
Response Time: 250 ms
Wetted Parts: Dry, clean, non-corrosive gases only
Enclosure: NEMA 4X (IP65), 137 L x 76 W x 64 mm D (5.4 x 3 x 2.5")
Pressure Port: ¼ NPTF
Electrical Connections: Screw terminal (two ½ NPTF conduit)
Weight: 955 g (2.1 lb)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PX654-0.1D5V 8 Weeks   ¥10,580.00    0-0.1inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-0.25D5V 8 Weeks   ¥9,770.00    0-0.25 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-0.5D5V 8 Weeks   ¥9,310.00    0-0.5 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-01D5V 8 Weeks   ¥8,910.00    0-1 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-02D5V 2 Weeks   ¥10,310.00    0-2 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-03D5V 2 Weeks   ¥8,910.00    0-3 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-05D5V 8 Weeks   ¥8,910.00    0-5 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-10D5V 8 Weeks   ¥8,910.00    0-10 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-25D5V 8 Weeks   ¥8,910.00    0-25 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-50D5V 8 Weeks   ¥8,910.00    0-50 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-100D5V 8 Weeks   ¥8,910.00    0-100 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-200D5V 8 Weeks   ¥8,910.00    0-200 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-0.05BD5V 8 Weeks   ¥10,520.00    ±0.05 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-0.25BD5V 8 Weeks   ¥9,310.00    ±0.25 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-0.5BD5V 2 Weeks   ¥8,910.00    ±0.5 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-01BD5V 8 Weeks   ¥8,910.00    ±1 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-2.5BD5V 8 Weeks   ¥8,910.00    ±2.5 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-05BD5V 8 Weeks   ¥8,910.00    ±5 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-10BD5V 8 Weeks   ¥8,910.00    ±10 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-25BD5V 8 Weeks   ¥8,910.00    ±25 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-50BD5V 2 Weeks   ¥8,910.00    ±50 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
 PX654-100BD5V 8 Weeks   ¥8,910.00    ±100 inch of water differential sensor with industrial enclosure and 1-5 Vdc output
† Price are shown in RMB.

 Note: Comes with complete operator's manual and calibration certificate.
  Ordering Example: (1) PX654-01D5V is a 1-inch of water differential sensor, ¥8,910.00
