High Accuracy Wet/Wet Differential Pressure Transducer with Amplified Voltage Output

PX81-5V

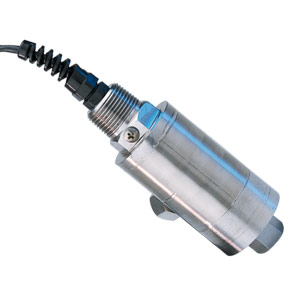

PX81-5V:High Accuracy Wet/Wet Differential Pressure Transducer with Amplified Voltage Output

Click for larger image.

•	High Accuracy Wet/Wet Differential Pressure
•	All Stainless Steel Construction for Harsh Industrial Environments
•	High Operating Temperature
•	5 Point NIST Calibration Provided 0%, 50%, 100%, 50%, 0%
•	See Related Links Below for Cables and Accessories
View related products - Pressure Transducers

OMEGA’s PX81 Series wet/wet, differential pressure transducer is a compact, high accuracy transducer designed for industrial applications where low drift and long term reliability are important. Its low temperature compensation error minimizes errors due to changing process temperatures and the rugged all stainless steel construction allows the PX81 to withstand typical harsh industrial environments found in chemical and industrial plants.

The PX81 is also available in metric configurations, with G1/4 ports, and models from 0-350 mbar to 0-35 bar pressure ranges. Please see the PXM81 for complete details, or contact our Pressure department for more information..

SPECIFICATIONS
Excitation: 24 to 32 Vdc
Output: 0 to 5 Vdc ±10% adj
Zero Balance: 0 V ±10% adj
Accuracy: ±0.25% linearity, hysteresis and repeatability combined
Operating Temp Range: -46 to 121°C (-50 to 250°C)
Compensated Temp Range: 17 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.0054% FSO/°C
Span: ±0.0054% rdg/°C
Safe Overpressure: 150% rated pressure
Line Pressure: 150% rated pressure (applied simultaneously to both sides)
Burst Pressure: 300% rated pressure
Wetted Parts: 17-4 PH stainless steel
Pressure Port: 1/4-18 NPT female
Electrical Connection:
Style 0: 3 m (10') cable
Style 1: PTIH-10-6P (or equal)
Style 6: mini DIN
Mating Connector:
Style 1: PT06F10-6S, sold separately
Style 6: Mating connector included

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
PX81D0-020D5T		Consult sales	0-20 psi differential pressure transducer with 0-5 Vdc output and a 10 ft (3m) cable	qty.

PX81D0-050D5T		Consult sales	0-50 psi differential pressure transducer with 0-5 Vdc output and a 10 ft (3m) cable	qty.

PX81D0-100D5T		Consult sales	0-100 psi differential pressure transducer with 0-5 Vdc output and a 10 ft (3m) cable	qty.

PX81D1-200D5T		Consult sales	0-200 psid range model with 0-5 Vdc output with an integral connector	qty.

PX81D1-300D5T		Consult sales	0-300 psi differential pressure transducer with 0-5 Vdc output and integral connector	qty.

PX81D1-500D5T		Consult sales	0-500 psi differential pressure transducer with 0-5 Vdc output and integral connector	qty.

PT06F10-6S		¥326.00	Mating connector (sold separately)	qty.

† Price are shown in RMB.

Note: Metric Ranges Available - Consult Engineering
Ordering Example: (1) PT06F10-6S mating connector (sold separately), ¥326.00,

Part Number Builder

	(1)		(2)	(3)
P P X X 8 8 1 1 D D		- -
Qty:

Option Descriptions

(1)

Electrical Connection

Select
0 for 10 ft PVC Cable
1 for PT1H-10-6P Connector or equal

(2)

Range (psid)

Select
001 for 0-1
002 for 0-2
005 for 0-5
010 for 0-10
020 for 0-20
030 for 0-30
050 for 0-50
100 for 0-100
200 for 0-200
300 for 0-300
500 for 0-500

(3)

Output

Select
DV for mV/V
D5T for 0-5 Vdc
DI for 4-20 mA

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
