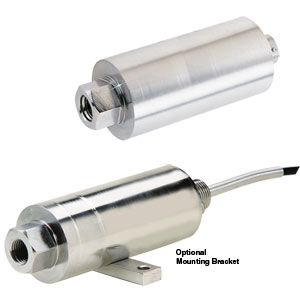

OMEGA’s PXM02 Electronic Barometer is a high accuracy, electronic barometer available in three ranges, 541 to 1.08 mbar, 880 to1.08 mbar or 948 to 1.08 mbar (absolute pressure) for laboratory or industrial test applications. They have all stainless steel construction which make them ideally suitable for harsh industrial environments. Their high operating temperature, broad compensated range and excellent temperature compensation allow stable readings in applications with fluctuating temperatures commonly found where barometric pressure must be monitored.
The PXM02-BAR is also available in standard/Imperial configurations, with NPT or UNF ports,
and models from 16 to 32 inHg pressure ranges.
Please see the PX02-BAR for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
0 to 5 V Model Input, Recommended: 24 to 32 Vdc Input, Maximum: 32 Vdc Output, FS: 0 to 5 Vdc Linearity: ±0.15% FS Hysteresis: ±0.1% FS Repeatability: ±0.05% FS Zero Balance: 0 ±10% FS, adjustable Thermal Effects: Span: 0.005% rdg/°F (0.009%/ºC) Zero: 0.005% FS/°F (0.009%/ºC) 4 to 20 mA Model Input, Recommended: 10 to 40 Vdc Input, Maximum: 40 Vdc Output, FS: 4 to 20 mA Accuracy: 0.25% FS, linearity, hysteresis and repeatability combined Zero Balance: 4 mA +10% -2% FS adj Thermal Effects: Span: 0.005% rdg/°F (0.009%/ºC) Zero: 0.005% FS/°F (0.009%/ºC)
COMMON SPECIFICATIONS Operating Temp Range: -47 to 121°C (-50 to 250°F) Compensated Temp Range: -18 to 66°C (0 to 150°F) Proof Pressure: 150% of rated pressure Burst Pressure: 300% of rated pressure Wetted Parts: 17-4 PH stainless steel Pressure Port: Style "MA": G1/8 male Style "MB": ;G1/8 female Style "MC": , G1/4 male Style "MD": , G1/4 female, standard Electrical Connection: Style "0": 3 m (10 ft) cable Style "1": PTIH-10-6P, standard Style "6": mini DIN connector Mating Connector: Style "1": PT06F10-6S (sold separately) Weight: 425 g (15 oz) For special options consult Sales or Pressure Engineering.
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
† Price are shown in RMB.
Note: NIST Traceable Calibration Certificate Included For Imperial Threads and psi Ranges please see the PX02-BAR Series For complete product specifications see the Related Links section at the bottom of this page.
Ordering Example: (1) PXM02MD0-541MBARA5T is an electronic barometer with 541-1080 mBar range, 0-5 Vdc output, 3 meter cable and G 1/4 female fitting, ¥10,075.00
Part Number Builder
(1)
(2)
(3)
(4)
P
P
X
X
M
M
0
0
2
2
-
-
M
M
B
B
A
A
R
R
A
A
Qty:
Option Descriptions
(1)
Pressure Fitting
Select MA for G 1/8 male MB for G 1/8 female MC for G 1/4 male MD for G 1/4 female
(2)
Electrical Termination
Select 0 for 3 meter cable 1 for PT1H-10-6P connector (mating connector sold separately) 5 for Lightening protected amplifier box (4-20 ma only) 6 for micro DIN connector
(3)
Pressure Range
Select 541 for 541-1080 mBar 880 for 880-1080 mBar 948 for 948-1080 mBar
(4)
Output
Select 5E for Isolated 0 to 5 Vdc 10E for 0 to 10 Vdc I for 4 to 20 mA
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
